Fixed displacement bent axis axial-piston motors

Fixed displacement bent axis axial-piston motors

Fixed displacement bent axis axial-piston motors are implied in hydraulic systems to transform the hydraulic power into the mechanical power of the drive shaft. Rotation speed is directly proportional to flow rate and inversely proportional to displacement. Rotating torque is proportional to the pressure differential in the inlet and outlet ports and displacement. The motors are equipped with splined shafts.

Motors are produced acc. to state standard ТУ У 29.1-05786100-010:2007


How to order





Technical specifications

Displacement  Code
112
56
Rated Displacement,
 cm3
109
56
Maximum Flow,
 l/min
164
85,4
Maximum Pressure in High Pressure Line,
MPa
20
Maximum Rotating Torque
 Nm
412
214
Maximum Case Pressure,
MPa
0,25
Speed,
min-1

    rated

1500
    maximum

3000
3600
    minimum

50
Rated Power,
kW
42
32
Weight (without fluid)
kg
30
20

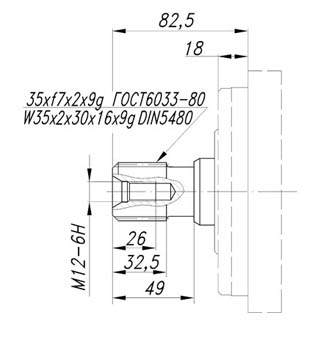

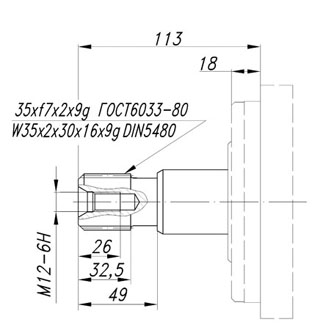

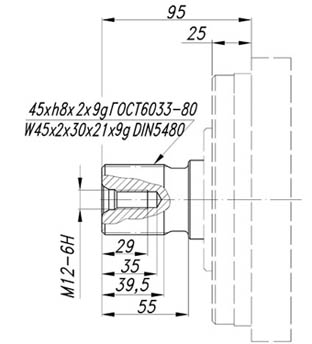

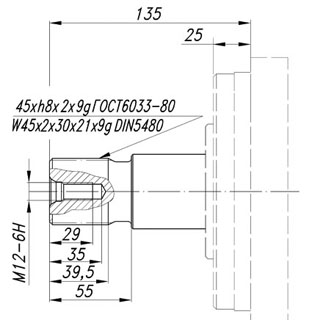

Shaft options

 Code А1  Code А2

Code B1  Code B2



  •







    		•
